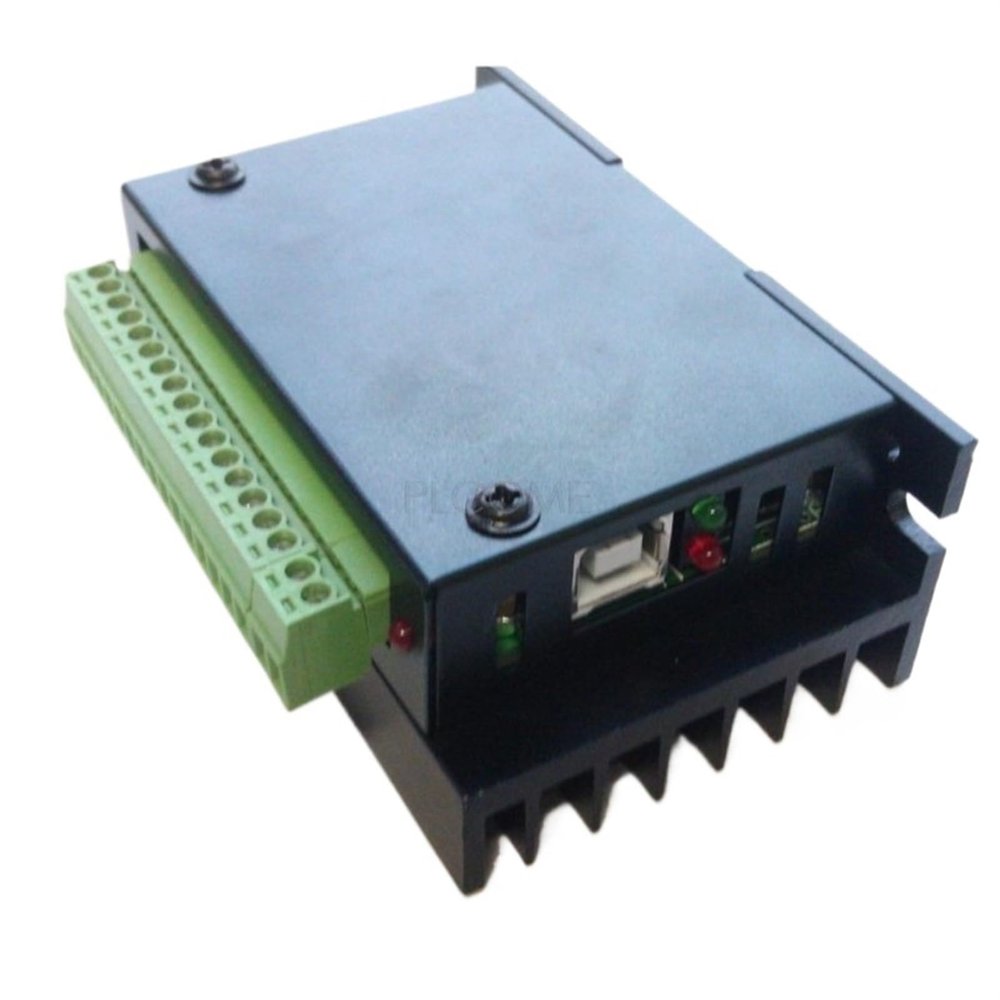

1-3 Axis USB Stepper Motor Control Card Board Computer Controller Drive Rs232, Provide Labview Program(3 Channels)

Description

• Motor Drives
• 1-3 Axis USB Stepper Motor Control Card Board Computer Controller Drive Rs232, Provide Labview Program

Motor Drives
Control 1~3 channels independent stepper motor by USB interface control card, motor speed , direction, distance traveled , send free Labview PC control software , directly connected to the stepping motor can be controlled on a computer , and feedback detected speed and travel distance and location , very convenient to use .
supports stepper motor under 2A such as 24,28,35,39,42,57 etc. .
USB communication protocol, supports also RS232 communications.
Offers PC development kit, support secondary development !
Main feature:
1. The stepper motor control card and integrated stepper motor driver chip ,You do not need additional stepper motor drives, stepper motors can be directly connected ;
2. Directly supports G code, supports fast positioning, linear interpolation, arc interpolation and other G code instructions;
3. USB communication protocol , stable and reliable , and supports RS232 protocol ;
4 .Labview software provides computer control EXE program , and Labview code , enabling customers to make changes and secondary development ;
5. Provide DLL files , libraries , API function descriptions , facilitate the development and control other PC languages ;
6. metal, high heat , industrial design ;
7. Easy operation, so that novices can also be easily controll stepper motor .
Note: This card requires an external + 12V or + 24V supply.
Shipping list:
1. Stepper motor control card *1 ;
2. USB data cable *1 ;
3. The control software and other information provided by Downloading link or send via email .
==========
Output Type : Motor
Model Number : USB-01M
