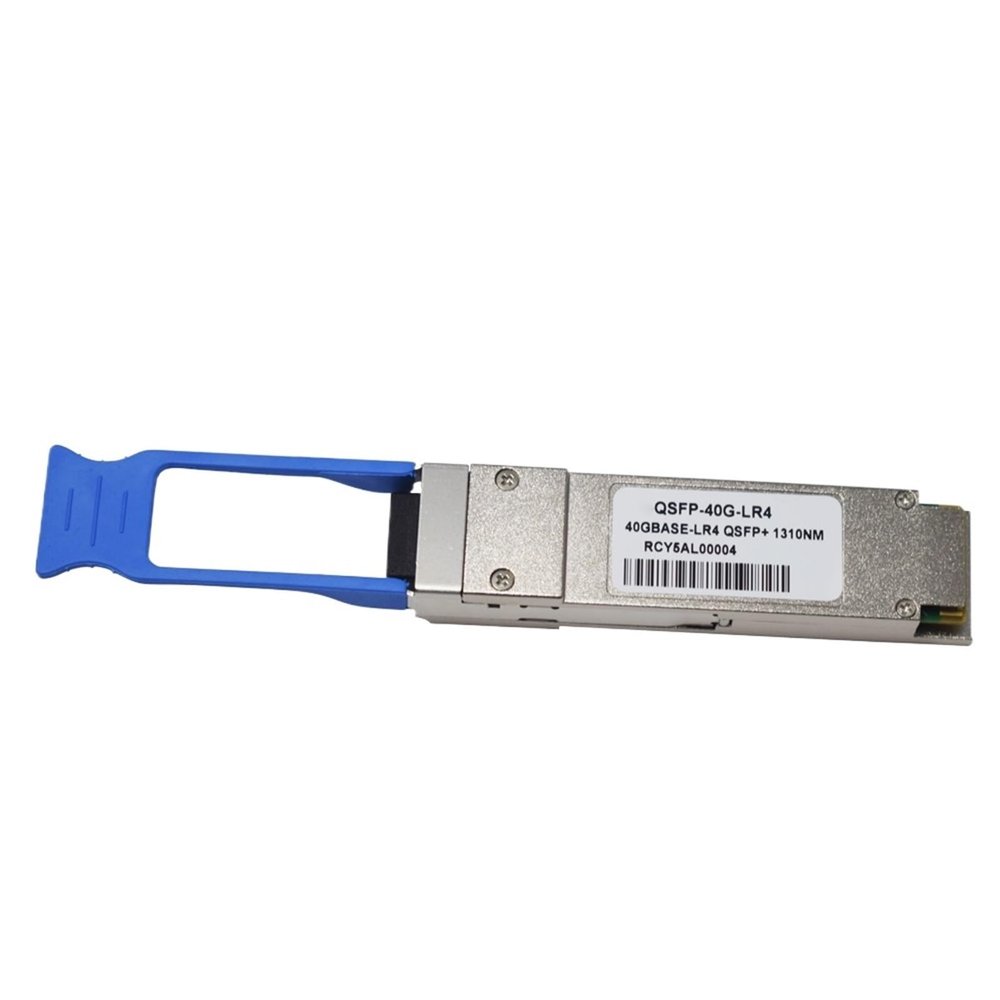

(1-6pcs) 40G QSFP+ LR4 SMF 1270~1330nm 10KM LC Optical Transceiver(1Unit)

Description

• Fiber Optic Receivers
• (1-6pcs ) 40G QSFP+ LR4 SMF 1270~1330nm 10KM LC Optical Transceiver

Fiber Optic Receivers
(1-6pcs) 40G QSFP+ LR4 SMF 1270~1330nm 10KM LC Optical Transceiver
This product is a transceiver designed for 2m-10km optical communication applications. The design is compliant to 40GBASE-LR4 of the IEEE P802.3ba standard. The converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this .

Product Feature
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Stan
QSFP+ complian
Compliant with QDR/DDR data rates
Up to 11.2Gb/s data rate per wavelength
4 CWDM lanes MUX/DEMUX design
Up to 10km transmission on single mode fiber (SMF)
Operating case temperature: 0 to 70
Maximum power consumption 2.5W
LC duplex connector
compliant
Applications
40GBASE-LR4 Ethernet Links
QDR and DDR interconnects
Client-side 40G Telecom connections
Mechanical Dimensions
