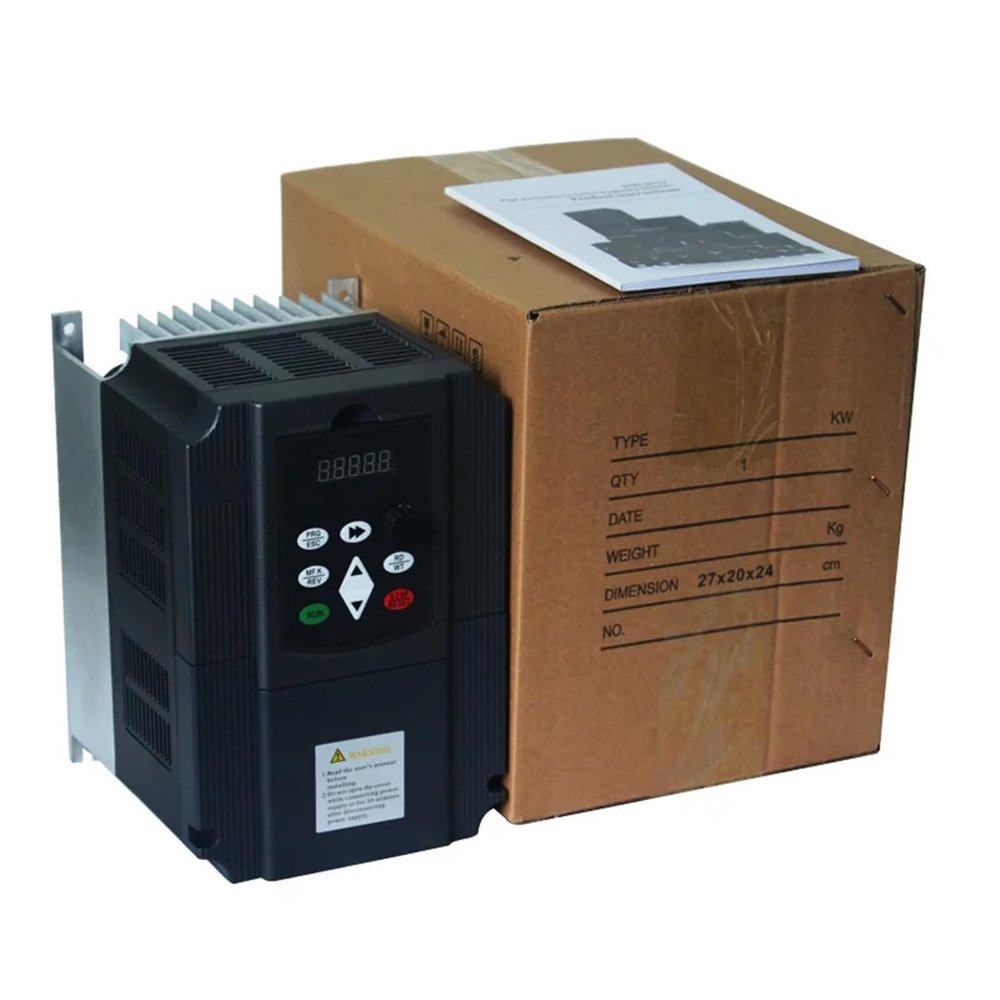

1PCS 11KW/7.5KW Frequency Inverter Input 1 Phase 220V Output 3 Phase 380V VFD-V Frequency Converter Inverters Speed Controller(220V to 380V 2.2kw)

Description

• Power Inverters
• 1PCS 11KW/7.5KW Frequency Inverter Input 1 Phase 220V Output 3 Phase 380V VFD-V Frequency Converter Inverters Speed Controller

Power Inverters
11KW/7.5KW Frequency Inverter Input 1 phase 220V output 3 phase 380V VFD-V Frequency converter Inverters speed controller
Input: single-phase 220V to R T
Output: U V W to three-phase 0-380V (415V/440V)
0-600HZ adjustable frequency
Used for machine tools, fans, water pumps, compressors, conveyors, etc
1.Input Voltage Range:single phase (1 phase) 220V15% 50hz/60hz
2.Output Voltage Range:Three phase 380V15%
3.Output Frequency Range:0~600Hz
4.Control way: Open loop vector control(SVC) V/F control
5.Starting : G type machine:0.5Hz/150%( SVC)
6.This Serial model has 4-20ma or 0-10V analog Input Functio.
7.Support Motor;you can set P0-10=P0-12=P0-08=P1-04=400HZ ,
Set P0-15=9 Carrier Frequency set High level parameter.
8.Support Replay Output (inside Relay)
9.Support PID function
10.Multi segment function, 16 segment speed programmable
OUR SUGGESTIONS
220V to 380V frequency converter is to solve the problem that the motor of electric equipment is 380V three-phase, but there is no 380V three-phase power supply around it, but only 220V single-phase power supply. The specific solution can refer to the following suggestions:
A. If the three-phase 380V motor itself is a star connection, it can be changed to a triangular connection. At this time, the motor becomes three-phase 220V motor, using our 220V converter to make single-phase 220V into three- phase 220V, the same level power selection can solve the problem.
(For motors that require fast shutdown and potential loads, inverters of the same voltage level are required and braking resistors are connected for normal use)
B. If the three-phase 380V motor itself is triangular connection, it can not be solved by changing its connection method. We must use our 220V to 380V converter to solve the problem, and pay attention to the selection.
C. Identification of motor connections can be referred to in the following figure:Figure1 is a star connected motor.Figure 2 is a triangular connection motor.
Type selection instructions:
1. Please read the product instructions carefully, choose the type according to the function and power you need, and avoid the damage caused by wrong wiring.
2. This frequency converter can not drive other load types except inductive load such as motor.
Please pay special attention to it when purchasing.
3. The overload capacity of 220V to 380V frequency converter is small.
Please choose at least one higher power level.
When the load is very large
(such as gear pump hydraulic pump) or there is a blocking condition,
choose a boost inverter that is 2 levels larger than the motor power.
4. The inverter cannot be connected to the braking unit and resistor,
and cannot be used in the occasions that require quick shutdown and
the occasions of potential load(such as cranes)
5. If you don't know how to choose the type, you can also contact us to give you some suggestions.
Supplementary Note:
A.If you need detailed version of product manual, you can contact us to send it to you free of charge.
B. If there is no paper product manual in the packing case, it is because of product changes or upgrades. Please contact us for the latest and accurate electronic product manual.
==========
Hign-concerned Chemical : None
is_customized : Yes
Output Current : 25A
Output Frequency : 0-600Hz
Model Number : WK600D
Output Power : 11KW
Type : DC/AC Inverters
Weight : 2.2KG
Size : 220*150*130
Output Type : Triple
Input Voltage : Single phase 220V
Output Voltage : Three-phase 380V
Control Mode : Open loop vector control(SVC) V/F control
Communication : RS485
24V Output Voltage : Yes
10V Output Voltage : Yes
Relay output : Normally open/normally close
