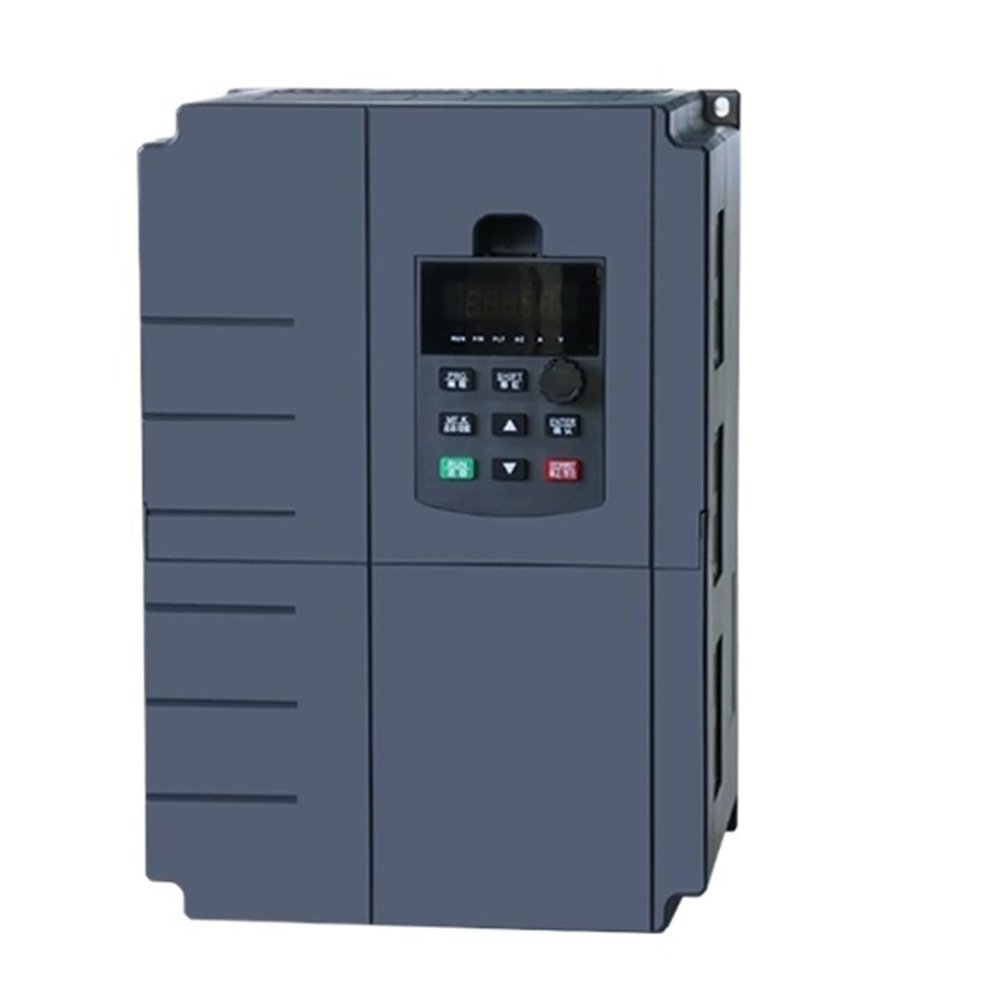

220V to 380V 22KW 30HP Three Phase Output Frequency Converter Inverter Variable Frequency Drive VFD 3Phase Motor Speed Control(N220V to 380V 11kw)

Description

• Power Inverters
• 220V to 380V 22KW 30HP Three Phase Output Frequency Converter Inverter Variable Frequency Drive VFD 3Phase Motor Speed Control

Power Inverters
220V to 380V 22KW 30HP Three Phase Output Frequency Converter Inverter Variable Frequency Drive VFD 3Phase Motor Speed Control
Input: single-phase 220V to R T
Output: U V W to three-phase 0-380V (415V/440V)
0-600HZ adjustable frequency
Used for machine tools, fans, water pumps, compressors, conveyors, etc
Type selection instructions:
1. Please read the product instructions carefully, choose the type according to the function and power you need, and avoid the damage caused by wrong wiring.
2. This frequency converter can not drive other load types except inductive load such as motor.
Please pay special attention to it when purchasing.
3. The overload capacity of 220V to 380V frequency converter is small.
Please choose at least one higher power level.
When the load is very large
(such as gear pump hydraulic pump) or there is a blocking condition,
choose a boost inverter that is 2 levels larger than the motor power.
4. The inverter cannot be connected to the braking unit and resistor,
and cannot be used in the occasions that require quick shutdown and
the occasions of potential load(such as cranes)
OUR SUGGESTIONS
220V to 380V frequency converter is to solve the problem that the motor of electric equipment is 380V three-phase, but there is no 380V three-phase power supply around it, but only 220V single-phase power supply. The specific solution can refer to the following suggestions:
A. If the three-phase 380V motor itself is a star connection, it can be changed to a triangular connection. At this time, the motor becomes three-phase 220V motor, using our 220V converter to make single-phase 220V into three- phase 220V, the same level power selection can solve the problem.
(For motors that require fast shutdown and potential loads, inverters of the same voltage level are required and braking resistors are connected for normal use)
B. If the three-phase 380V mot
