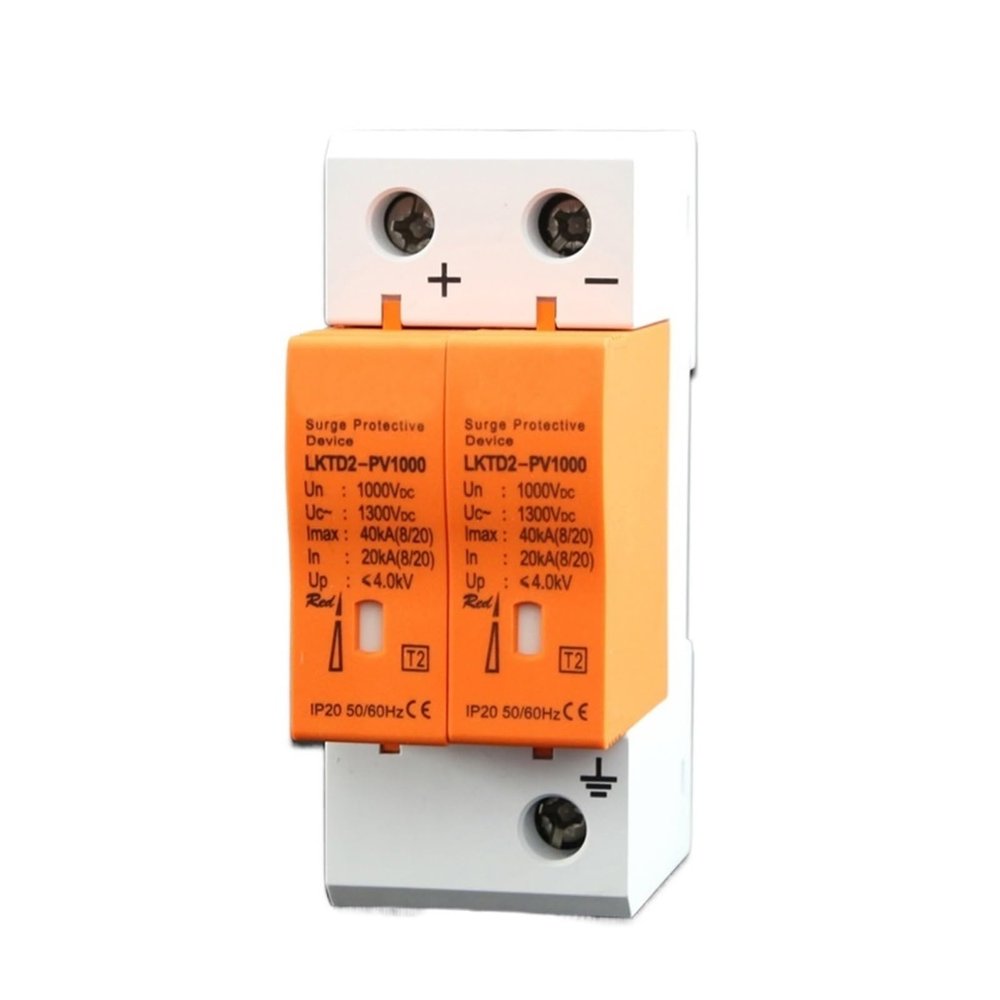

2P DC 500V 1000V 20-40KA SPD House Surge Protector Protective Arrester Device Din Rail Lightning Protection(1000VDC)

Description

• This product is a universal surge protection device, whose core function is to suppress instantaneous overvoltage and discharge surge current in power lines, providing basic electrical protection for electricity connected to the backend.
• The product has key technical parameters, such as specific maximum discharge current, voltage protection level, response time, etc., all of which are obtained based on general testing conditions and designed to meet common protection requirements.
• Widely applicable to homes, offices, shops, and small industrial environments, it provides additional surge protection for sensitive electronic devices connected to the power grid, such as computers, televisions, air conditioners, security systems, etc.
• Designed for standard rail installation or wall mounting, compatible with general electrical installation boxes. Equipped with a working status indicator light, it can intuitively display whether the protection function is normal.
• This product provides a standard quantity of power input/output ports, suitable for common single-phase/three-phase AC power supply systems, to achieve universal line protection functions.

==========
Type : Circuit breaker
Model Number : SY-SPD2-1000V
Is Device : No
Origin : China
Certification : CE
Rated voltage: : Un 1000Vdc/Uc 1300Vdc
Current In(KA) : 20A Imax(KA):40A
Poles Number : 2P(DC+,DC-,GND)
Contact Position Indication : ON/OFF/TRIP
Color : Orange
<;=2.8KV
Protection Grade : IP20
Standard : IEC61643-1 GB18802.1
diameter : 91*36*62mm
