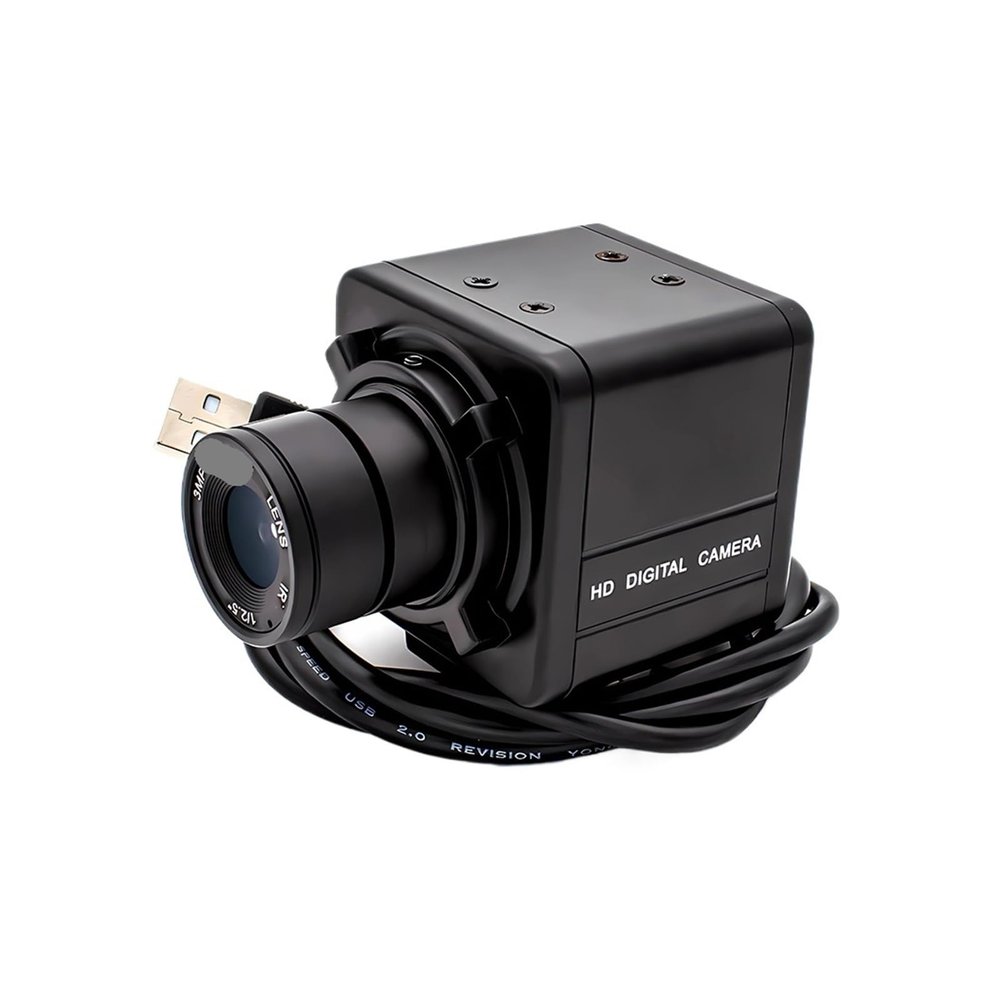

BQHHWTZ 1080P 90FPS Global Shotter USB Camera High Frame AR0234 Industrial Metal Box Fixed Focal Lens Without Blur Mini Webcam

Description

• 1080p 90fps|High Frame Rate:Capture fast-moving subjects with clarity at 90FPS, ideal for high-speed sports photography and industrial inspection.
• Adjustable Parameters:Customize your imaging with adjustable parameters like brightness, contrast, saturation, and hue.

High Frame Rate: The camera supports high frame rates, delivering MJPEG video at 90fps in resolutions
Global Shutter vs. Rolling Shutter:
500s), making them more suitable for different imaging scenarios.
Applications: The combination of high image quality, elevated frame rates, and good sensitivity makes global shutter cameras ideal for various applications, including:
High-speed sports photography
Industrial inspection
Video applications
Industrial automation
Robotics
Scientific imaging
Augmented and virtual reality
Gesture and eye tracking
Depth and motion detection
Model
Sensor
AR0234 (1/2.6") Global Shutter
Max Resolution
1920 (H) *1200 (V)
Sensor Size
1/2.6 inch (4:3)
PixelSize
3.0m
Compression Format
MJPEG/YUV2 (YUYV)
Resolution& Framerate
1920x1200 90fps MJPEG
1920x1080 90fps MJPEG
1600x1200 90fps MJPEG
1280x960 90fps MJPEG
1280x720 @90fpsMJPEG
1024x768 @ 90fps MJPEG
960x720 @ 90fps MJPEG
800x600@ 90fps MJPEG
640x480 @ 90fps MJPEG
320x240 @ 90fps MJPEG
Surface Mount Technology
SMT
Fixed
Central Definition
600LW/PH (Center)
S/N Ratio
37dB
DynamicRange
70dB
Sensitivity
1.4V/lux-sec@550nm
MiniIllumination
0.3lux
Shutter
Global Shutter
Interface
USB2.0 High Speed
AEC
Support
AWB
Support
AGC
Support
AdjustableParameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Compensation, Exposure
Lens Parameters
with 5-50mm Varifocal lens
LED board power connector
Support 2P-2.0mm socket
Power Supply
USBBUSPOWER4P-2.0mm socket
Operating Voltage
DC5V
WorkingCurrent
160mA- 190mA
Dimension
38mm x 38mm
Storage Temperature
-20Cto80C
Working Temperature
0C to 60C
OperatingSystemRequest
Linux withUVC(abovelinux-2.6.26)
Step 1: Install Computer USB Camera Software
Contact customer service to obtain the software installation package.
Step 2: Connect the computer using a USB cable.
Step 3: Adjust the focal length to achieve a clear image.
90FPS
Pixels : 2-3 million
Weight : 201g-300g
NightShot Function : No
Sensor Size (inches) : 1/2.6 inches
Sensor Type : CMOS
Type : Professional
High Definition Support : 1080P (Full-HD)
Sensor Size : 1/2.8 inches
Use : Home Use
Image Stabilization : No image stabilization
Sensor : AR0234 Global Shutter
Max Resolution : 1920H *1200V
Sensor Size : 1/2.6 inch-4:3
PixelSize : 3.0m
Compression Format : MJPEG/YUV2-YUYV
Interface : USB2.0 High Speed
Shutter : Global Shutter
Lens Parameters : Fixed Focul lens
Dimension : 38mm x 38mm
