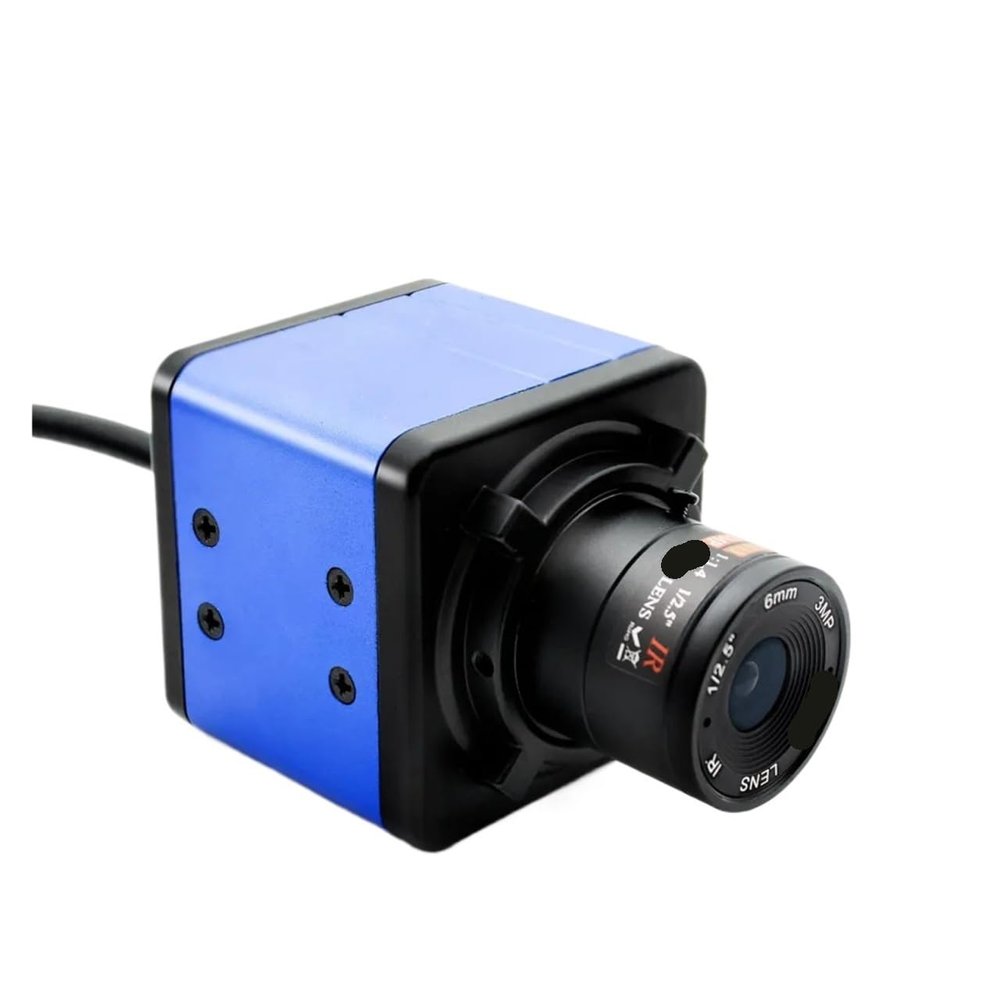

BQHHWTZ 4K Mini POE IP Camera CMOS Sensor Security Industrial Video 3 4 5 8MP Metal Box Network Camera with 6mm 2 12mm Lens

Description

• Mini Camera|4K Resolution:Capture crystal-clear images with 4K resolution, ensuring every detail is visible for comprehensive surveillance.
• Smart Home Compatibility:Effortlessly integrate with smart home systems, providing seamless monitoring and control from your mobile devices.
• Versatile Lens Options:Choose between a fixed 6mm lens or a manual zoom 2.8-12mm lens for tailored field of view needs.
• POE Power Capability:Eliminate the need for a power adapter with POE 48V support, simplifying installation and reducing clutter.

CS Lens option: 2.8mm,4mm,6mm,8mm,12mm,16mm,25mm,2.8-12mm,3.6-10mm,5-50mm,6-60mm,5-100mm
Note: Supports replacement of filters of other specifications. Available models include Narrowband 650nm/740nm/780nm/808nm/850nm/905nm/940nm/980nm, 700nm long wave pass, Infrared 650nm/850nm/940nm
Superior image quality and flexibility for your surveillance system
3/4/5/8MP HD resolution: Provides ultra-clear, detailed images to ensure that every corner of the surveillance can be accurately captured.
2.8-12mm zoom lens: Flexible adjustment of focal length to achieve accurate monitoring at close or long distances to meet the needs of different scenarios.
POE 48V power supply: Direct power supply through Ethernet cable, simplifying wiring work, reducing installation costs, and improving stability.
Specification
3/4/5/8MP
System structure
Embedded RTOS design, dual-core 32-bit DSP(NT98566), pure hard compression
Sensor
8MP black light CMOS sensor; Color 0.0001Lux@F1.2, black and white 0.0001Lux@F1.2
5MP 1/2.8" SC52395 low illumination CMOS sensor; Color 0.01Lux@F1.2, black and white 0.001Lux@F1.2
Video processing
H265AI/H.265+(compatible with H.265/H.264) encoding, dual stream, AVI format;
The stream is adjustable from 0.1M to 10Mpbs: the frame rate is adjustable from 1-30 frames per second
Image output
Main stream: 8MP 3840*2160@15fps; 5MP 2880*1616@25fps;4MP 2560*1440@25fps;3MP 2304*1296@25fps;2MP 1920*1080@25fps;
Substream: 800*448@25fps
Shutter
1/50(1/60) second to 1/10,000 second
Lens
Focal length and zoom lens, optional (2.8mm/4mm/6mm/8mm/12mm/16mm/25mm/2.8-12mm/3.6-10mm/5-50mm/6-60mm/5-100mm)
Day-night switching mode
Support IR-CUT, IR-CUT coil internal resistance of 20 Ohm, power duration less than 200ma, voltage 3.5V-6V
Noise reduction
Support 2D/3D noise reduction
Wide dynamic
Supports digital wide dynamic
Audio processing
G.711A COdec standard, supporting audio and video synchronization
Audio interface
1 input, level 2Vp-p, resistance 1k, support pickup input; 1 channel output, resistance 16k, 30mw output power, support to connect headphones or public amplifier
Network interface
1 RJ45 Ethernet interface, 10/100M adaptive; Support network protocols such as RTSP/FTP/DHCP/NTP/UPnP (combined with power interface)
Signal interface
1 photoresistor interface, 1 IR-CUT driver interface, support photoresistor input signal and IR-CUT, infrared lamp linkage
Intelligent analysis
Supports humanoid detection, face detection, and customization of other intelligent functions
Business function
support
Mobile phone surveillance
Power source
Power supply DC12V/2A, power consumption 3W
Plate size
38mm*38mm
Instructions
Support POE power supply, light board drive voltage at 3.3V
Rreliability
About RTSP
Address stream:
Enter the network URL in Please enter network URL:
rtsp://10.6.3.57:554/user=admin&passwordchannel1&stream0sdp?
10.6.3.57 This is the IP of the connected device
:554 This is the port number of the RTSP service, which can be changed in the device's network service
user=admin This is the login user name for the device
password= Password blank
channel=1 First channel
stream=0.sdp?Main code stream
stream=1.sdp?Auxiliary code stream
rtsp://192.168.1.10:554/user= admin&passwordchannel1&stream0sdp?
rtsp://10.6.3.57:554/user=admin&passwordchannel1&stream0sdp?
10.6.3.57 is the device IP address
:554 is RTSP port,can reset in device network service
user=admin is device user's name
password= no pass word
channel=1 refer to Channel No.1
stream=0.sdp? mainstream
stream=1.sdp? substream
About computer operation and use
Make sure the camera is connected to the power supply and network
(the signal light flashes to prove that everything is normal)
Step 1 : Install VMS
VMS Computer Client:https://download.xm030.cn/d/MDAwMDE2OTA=
Step 2: Login VMS
UserName: admin,Password:admin
Step 3: Find your camera and add
Zoom type : Digital zoom
Zoom : 10x
Lens Quantity : Single lens
AI Functions : Face Comparison
Shell Material : Metal
Color Night Vision : No
Operating Temperature : -30+-60
Power Mode : Mains Electricity
Scene : Indoor
Megapixels : 8MP
Power Supply : With POE
Internal Storage : None
Installation : Ceiling,Embedded,Wall Mounted
Color : Red,Blue
is_customized : Yes
Audio Output : None
Video Compression Format : H.264,H.265
Dimensions (L x W x D)(mm) : 50mm x 50mm
Power Supply(V) : DC12V/POE48V
Alarm Action : FTP Photo
Sensor : CMOS
Supported Operating Systems : Windows 98,Windows XP,Windows vista,Windows 7,Mac OS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
Lens (mm) : 2.8-12mm,6mm
Connectivity : IP/Network Wired
High Definition : 8.0 Megapixels
Style : Mini Camera
Specification : 3/4/5/8MP
Sensor : 8MP black light CMOS sensor; Color 0.0001Lux@F1.2, black and white 0.0001Lux@F1.2 5MP 1/2.8" SC52395 low illumination CMOS sensor; Color 0.01Lux@F1.2, black and white 0.001Lux@F1.2
Video processing : H265AI/H.265+ compatible with H.265/H.264 encoding, dual stream, AVI format; The stream is adjustable from 0.1M to 10Mpbs
