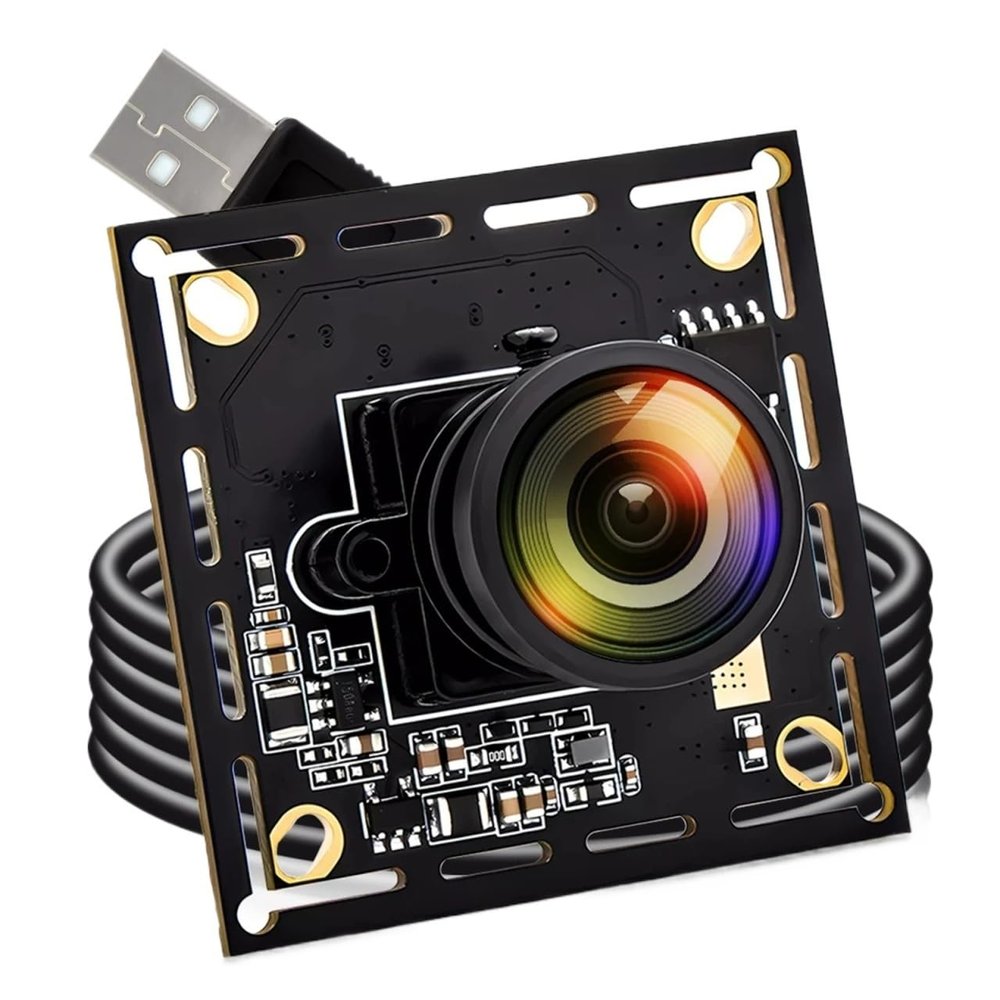

BQHHWTZ 90FPS USB Camera Module 1080P 2MP Global Shutter AR0234 Board with 1mm 145 Wide Angle View Lens High Frame Rate Camera

Description

• High Frame Rate:Capture fast-moving subjects with clarity using the 90FPS high frame rate, ideal for sports and industrial inspection.
• Global Shutter Technology:Avoid skew and wobble with the global shutter, perfect for high-speed motion capture in short exposure times.
• Wide Angle Lens:The 1.8mm 145 wide angle view lens provides a broader field of view, enhancing industrial automation applications.
• Adjustable Parameters:Customize your camera with adjustable parameters like brightness, contrast, and white balance for optimal performance.

1080P 90FPS Global Shutter AR0234 Sensor Overview
Global Shutter vs. Rolling Shutter:
500s), making them more suitable for different imaging scenarios.
Applications: The combination of high image quality, elevated frame rates, and good sensitivity makes global shutter cameras ideal for various applications, including:
High-speed sports photography
Industrial inspection
Video applications
Industrial automation
Robotics
Scientific imaging
Augmented and virtual reality
Gesture and eye tracking
Depth and motion detection
Model No.
Sensor
AR0234(1/2.6" )Global Shutter
Max Resolution
1920(H) *1200(V)
Lens Size
1/2.6 inch(16:9)
Pixel Size
3.0um *3.0um
Image area
TBD
Compression Format
MJPEG / YUV2(YUYV)
Supported resolution and frame rate
1920*1200 @ 90fps MJPEG
1920*1200 @ 5fps YUV
1920*1080@ 90fps MJPEG
1920*1080 @ 5fps YUV
1280*960 @ 90fps MJPEG
1280*960 @ 5fps YUV
1280*720 @ 120fps MJPEG
1280*720 @ 15fps YUV
800*600 @ 120fps MJPEG
800*600 @ 20fps YUV
640*480 @ 120fps MJPEG
320*240 @ 120fps MJPEG
640*480 @ 30fps YUV
320*240 @ 90fps YUV
Camera Board Assembly Technology
SMT
fixed
Center clarity
600LW/PH (Center)
Signal-to-Noise Ratio
38dB
Dynamic Range
71.4dB
Sensitivity
1.4V/lux-sec@550nm
Minimum illumination
0.3lux
Shutter type
Global shutter
Interface Type
USB2.0
Automatic Exposure Control AEC
support
Automatic White Balance AEB
support
Automatic Gain Control AGC
support
Adjustable parameters
Brightness Contrast Color Saturation Hue Sharpness Gamma White Balance Backlight Contrast Exposure
Lens specifications
CS Mount Lens:4mm/6mm/8mm/12mm/16mm/2.8-12mm/3.6-10mm/5-50mm/5-100mm
Light board power supply interface
/
Power supply and interface
CON_5PIN1.25 Vertical Seat
Voltage
USB-5V
Current
80mA- 280mA
size
38mm(L) 38mm(W) x24mm(H)
Storage temperature
-40C to 85C
Operating temperature
0C to 70C
USB cable
1M(2M/3M/5M optional)
System Support
Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26)
Step 1: Install Computer USB Camera Software
Contact customer service to obtain the software installation package.
Step 2: Connect the computer using a USB cable.
Step 3: Adjust the focal length to achieve a clear image.
Zoom type : None
Zoom : None
Lens Quantity : Single lens
AI Functions : Motion Detection
Operating Temperature : -10-60
Megapixels : 2MP
Power Supply : Normal
Installation : Embedded,Normal,Wall Mounted
Color : black
is_customized : Yes
Video Compression Format : H.265
Dimensions (L x W x D)(mm) : 38x38mm
Alarm Action : FTP Photo,telefon Alarm,Email Photo
Sensor : CMOS
Supported Operating Systems : Windows 98,Windows XP,Windows vista,Windows 7,Mac OS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
Lens (mm) : 1.7mm
Connectivity : Closed System/CCTV Wired
High Definition : 1080P(Full-HD)
Style : Mini Camera
Wide Angle : 145 degree
