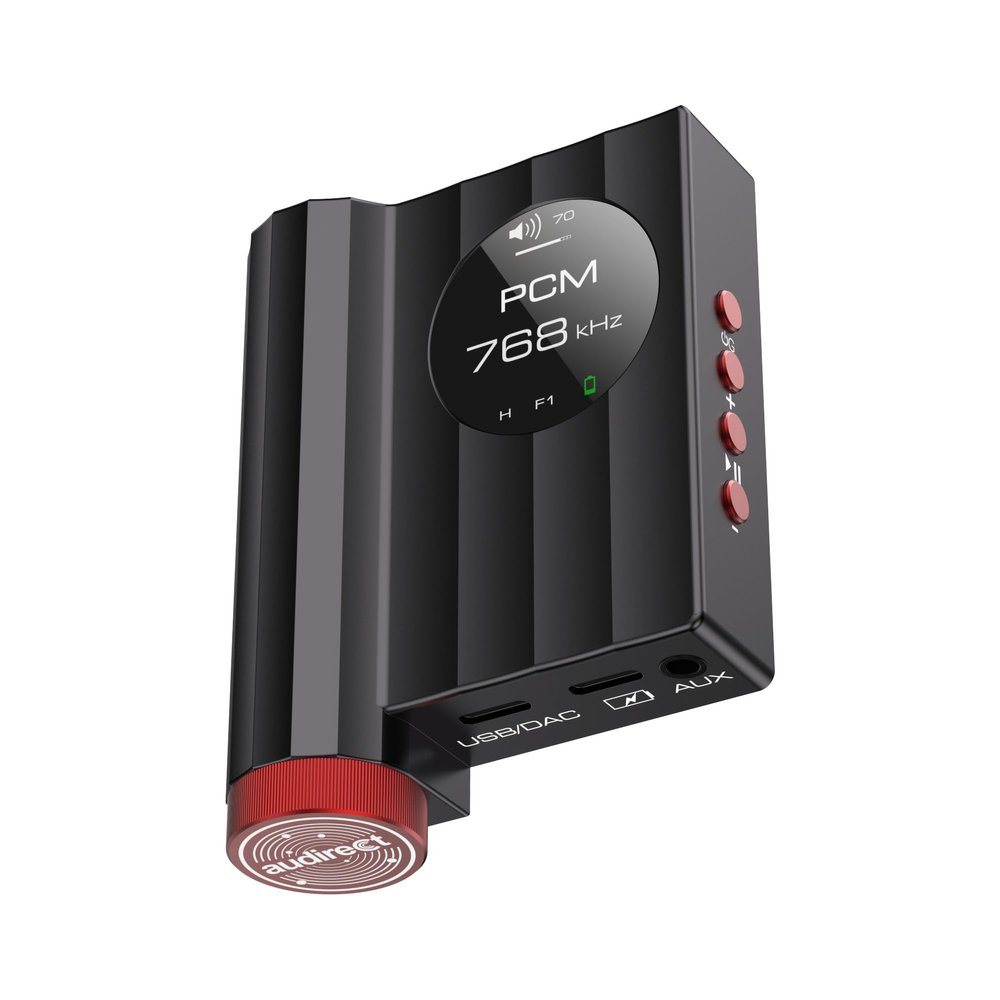

Fanmusic AUDIRECT Team1 MegaSafe Version Headphone Amplifier LME49860 DAC/AMP Decoder 3.5mm 4.4mm (Gray)

Description

• Team 1 MegaSafe Version, Miniature desktoplossless bundled decoder, LME49860 Magnetic docking Swappable battery. Desktop-inspired design,miniaturized solution.
• A five-op-amp, three-stage amplifier circuit. The main amplification stage of this circuit consists of a dual-channel LME49860MAX, while the secondary amplification stages are comprised of 4 high-current RT6863C op-amps.
• Magnetically secure and easy to carry. A new form factor that's easy to hold with one hand, making it perfect for on-the-go use.
• 3500mAh high-capacity power battery. Only utilize the high-efficiency voltage range of the battery. (drawing only 1500mAh from a 3500mAh battery, ensuring the minimum voitage is above 3.75V)
• 3.5mm and 4.4mm dual output interface. Offering both 3.5mm single-ended and 4.4mm balanced options. Enjoy a more immersive listening experience with our dual output design.
• With its flexible cable design, you can easily charge your phone. With an external charger, you can power both your phone and Team1 at the same time. (The device features a button to control phone charging.)

SPECIFICATIONS
Product Model: TEAM1 Magnetic Mini Desktop Hi-Res Audio DAC
DAC chip: ES9281AC PRO
Op-amp: LME49860MAX+RT6863C/TR*4 (TR high-current output stages)
Outputs: 3.5mm single-ended and 4.4mm balanced headphone jacks
Frequency response: 0.083dB@20Hz~40kHZ

3.5mm output power:
>250mW(16)>280mW(32)

4.4mm output power:
>140mW(16)>165mW(32)

Signal-to-noise ratio: -118dB
Total harmonic distortion plus noise(THD+N): 0.0004%
Maximum sampling rate: 32-bit/768kHz
Supports DSD format up to DSD512
Weight: 140g
Battery capacity: 3500mAh
Dimensions: 80mm x 62mm x 23mm

WHAT IN BOX?
Team 1 * 1
User manual * 1
