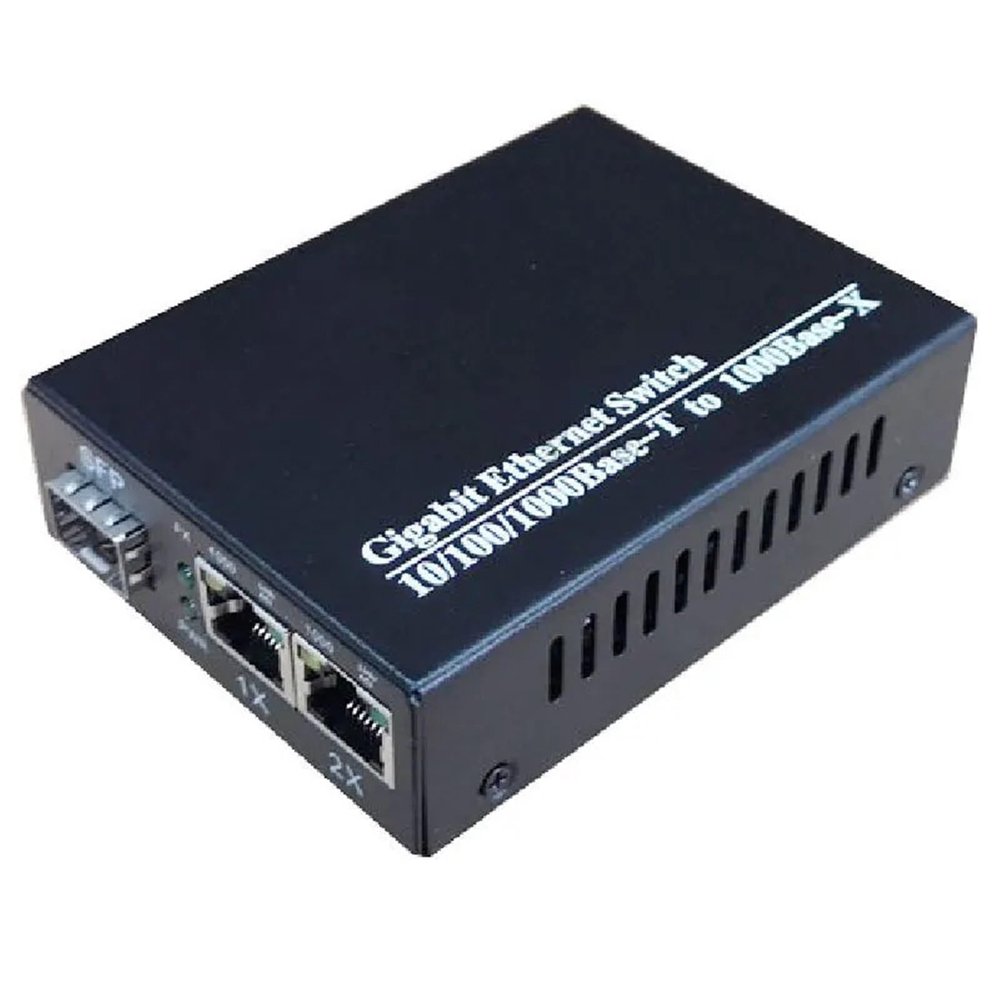

Gigabit Media Converter 1 Port sfp to 2 rj45 Optical Fiber GPOn/Epon OLT ethernet for IP Camera 10/100/1000M(LC 20KM EU Power)

Description

• Electronics / Television & Video / Accessories / Video Converters

Electronics / Television & Video / Accessories / Video Converters
SFP Fiber to RJ45 converter gigabit SFP media converter 1000Mbps SFP Gigabit Fiber Optical Converter Board
10/100/1000 Mbps SFP Slot Ethernet Media Converter
Overview
This 10/100/1000M Gigabit Ethernet converter is used in backbone network transmission and is primarily used for Gigabit Ethernet devices links. It converts Optical-Electric Ethernet signals between
10/100/1000M UTP interface (TX) and 1000M SFP socket (FX). According to customers'requirements, this media converter supports single-mode and multi-mode fibers with a transmission distance of up to 80 km for single-mode fiber and 550 m for multi-mode fiber. It extends the transmission distance through its conversion network. The media converter takes advantage of intelligent connection technology to provide auto-negotiation thereby eliminating the need to manually configure or monitor settings.
Key Features
* Modular design, and play
* Complies with IEEE 10/100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX standards
* Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex
* Available in single fiber WDM versions - 1310/1550 nm wavelengths used
* Supports automatic cross of twisted pair ports
* Alarm LED illuminates to indicate link failure, status LEDs for easy monitoring of device's status
Specifications:
Standards
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3z 1000Base-SX/LX
IEEE802.3x Flow control
IEEE802.1p QoS
IEEE802.1d Spanning Tree
Ethernet Port
Connector: RJ45
Data Rate:10/100M or10/100/1000M
Distance: 100m
UTP Type: UTP-5E or higher level
Fiber Port
Connector: SC/FC/ST/SFP slot
Data Rate: 155M or 1.25Gbps
Optical Wavelength: 850nm/1310nm/1490nm/1550nm
Distance: 550m-120km
Performance
Processing Type: Store and Forward
Table Size:4K/6K/8K
Buffer Space: 500kbs/1Mbit/2Mbit
Jumbo Packet: 1518 bytes
Back bandwidth: 3.8G/5.6G/7.2G
<;150s
Power
Power type: external power supply
Input Voltage: AC100V-240V 50/60Hz
Connector: DC Socket
Working Voltage: 5V
Power Consumption: 2.2W-3.5W
Transmissin Distance
Twisted Pair: 100m (CAT5e, CAT6 cables)
Muti-mode: 2km
Single-mode: 3/20/40/60/80/100km
MTBF
100, 000 hours
Environment
Storage Temperature: -40-70
Operating Temperature: -10-55
Relative Humidity: 5-90% ( no condensation)
Mechanical Structures
Dimension: 21510726mm
Weight: 0.15
PCB main board
==========
Wireless function : No
High-concerned chemical : None
Fiber Type : Single Mode
Connector Type : SC/UPC
Item Length : 1m
Model Number : SFP-0102-1
