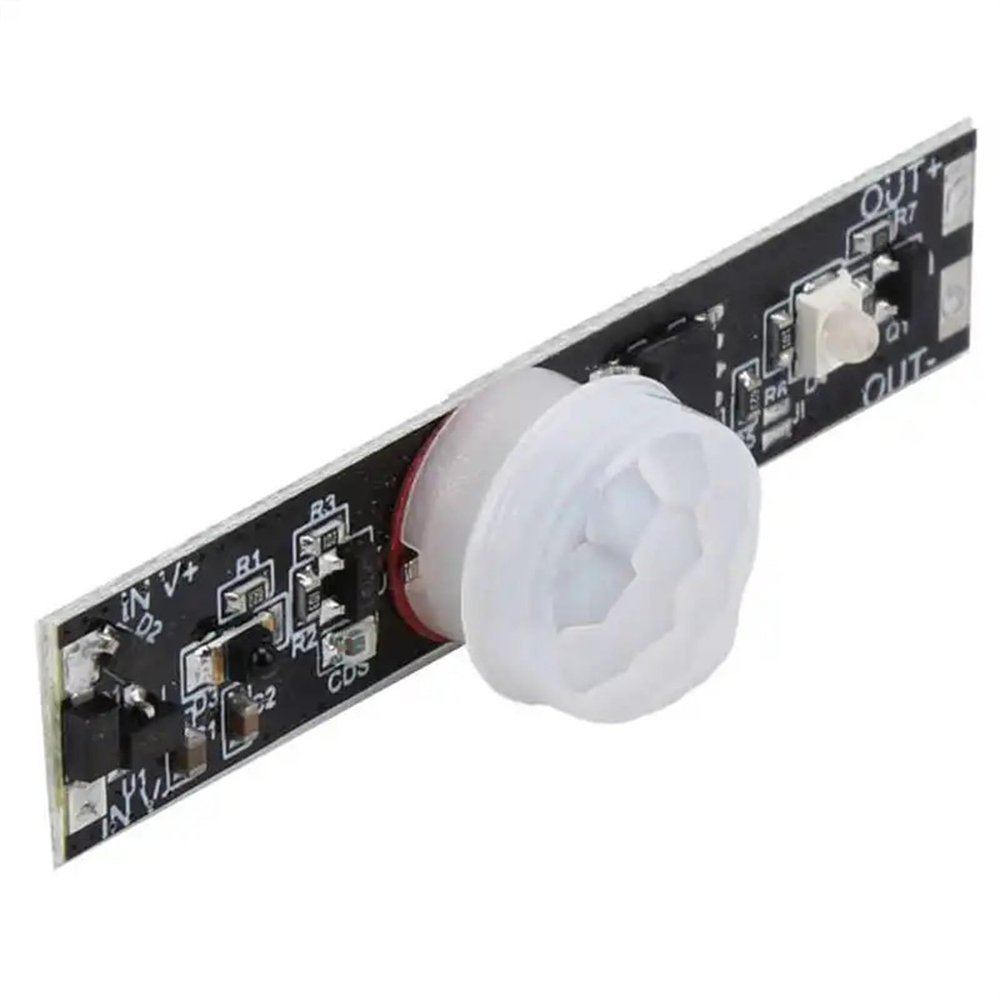

LZG-HWPIR-V2 DC3.7V-24V Infrared Motion Sensor Module ABS PIR Switch Drive for Lighting

Description

• Pushbutton Switches
• LZG-HWPIR-V2 DC3.7V-24V Infrared Motion Sensor Module ABS PIR Switch Drive for Lighting

Pushbutton Switches
Infrared Motion Sensor Module ABS PIR Switch Drive for Lighting LZGHWPIRV2 DC3.7V24V
Feature:
1. With small in size, this module is very simple to use and very quick to learn for novices.
2. The sensor is very sensitive, the larger the area captured by the probe, the higher the sensitivity, the longer the distance.
3. The sensor is widely used in lighting products, which is very suitable for kitchen cabinet lights.
4. The sensing distance is relatively wide, and it can sense a distance of 1-3 meters.
5. This is a constant voltage sensor, that is, the input voltage is equal to the output voltage. Specification:
Item Type: Infrared Motion Sensor Module
Material: ABS
Model: LZG-HWPIR-V2
Purpose: Circuit board of kitchen cabinet light
Input Voltage: Constant voltage DC3.7v-24v
Output Voltage: Input voltage = output voltage
Maximum Current: 3A
Sensing distance: Approx. 1-3 meters / 3.3-9.8ft
Manual Scanning Sensing Distance: Approx. 50mm / 2in
<;120
<;10Lx to start the infrared sensor
Sensing Time: 20 seconds
Touch Sensing: LED is always on.
Refresh Overlap: 5 seconds before the light goes out after the sensor is turned on. After detecting human activity, add light again for 20 seconds.
Package List:
1 x Module
==========
Hign-concerned Chemical : None
Power Supply : DC
Model Number : LZG-HWPIR-V2
Motor Type : DC Motor
