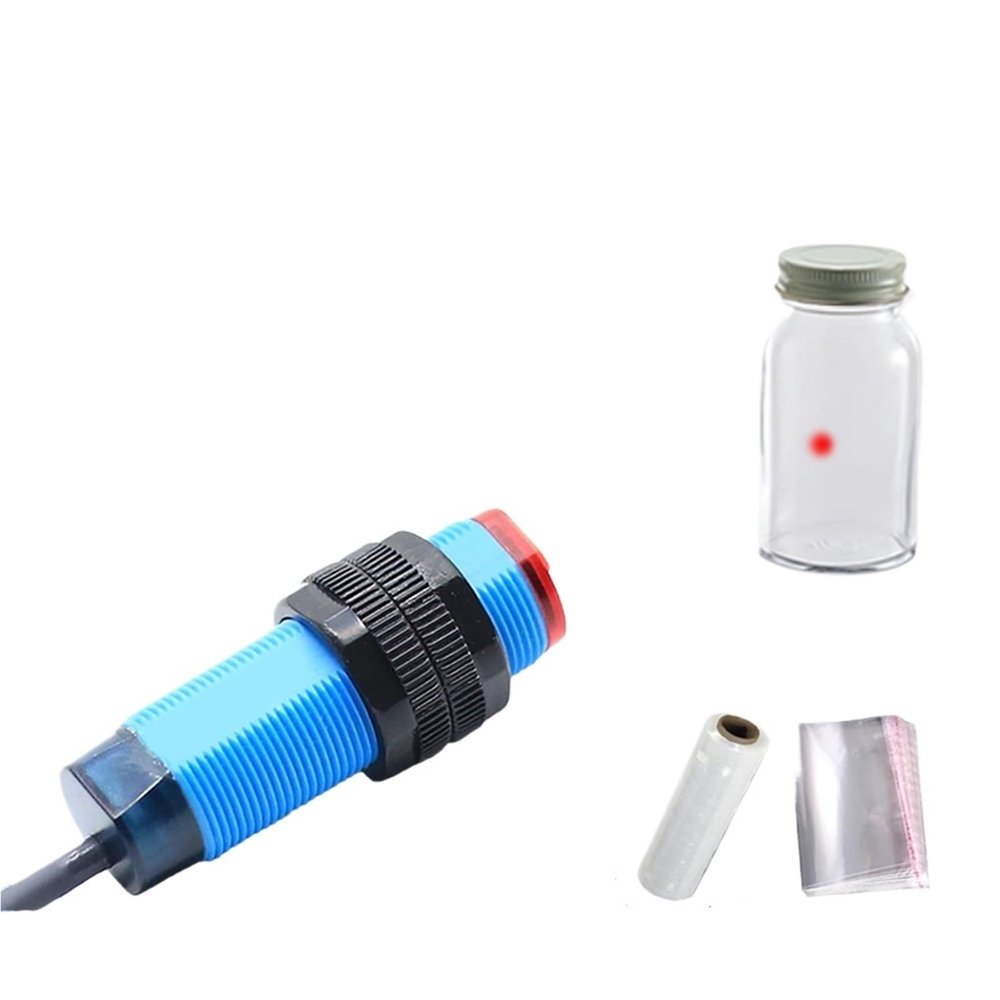

M18 Transparent Glass Detection Photocell Diffuse Reflect Feedback Sensor Proximity Switch Motion Detector(PM18S-BC40P)

Description

• Transducers
• M18 Transparent Glass Detection Photocell Diffuse Reflect Feedback Sensor Proximity Switch Motion Detector

Transducers
Model specifications
Detection method
Diffuse Reflection
Feedback Reflex
NPN NO
PM18S-BC40DNO
PM18S-BC3MNO
NPN NC
PM18S-BC40DNC
PM18S-BC3MNC
NPN NO+NC
PM18S-BC40DNR
PM18S-BC3MNR
PNP NO
PM18S-BC40DPO
PM18S-BC3MPO
PNP NC
PM18S-BC40DPC
PM18S-BC3MPC
PNP NO+NC
PM18S-BC40DPR
PM18S-BC3MPR
Specification parameters
Detection method
Diffuse reflection type
Consume current
25mA
Rated distance SN
10cm 40cm(Adjustable)
Protection Circuit
Short circuit/overload/reverse polarity protection
Target
White card reflectivity 90%
Response time
<;8.2ms
Light
Infrared LED (880nm)
Output indication
Yellow LED
Profile specification
M18*56MM
Ambient temperature
'-15...+55
Output mode
NO/NC(Depends on the model)
Ambient humidity
35-95%PH(No condensation)
Power supply voltage
10-30VDC
Impact withstand voltage
1000V/AC 50/60Hz 60s
The type of detector
Opaque
Insulation impedance
50M(500VDC)
Range of hysteresis(%/Sr)
3...20%
Vibration resistance
Complex amplitude 0.5 mm 10.50 Hz (x, y, z direction 2 hours each)
REPETITION error
5%
Protection level
IP67
Load current
200mA
Shell material
PBT
Residual voltage
2.5V
Connection mode
2M PVC lead
