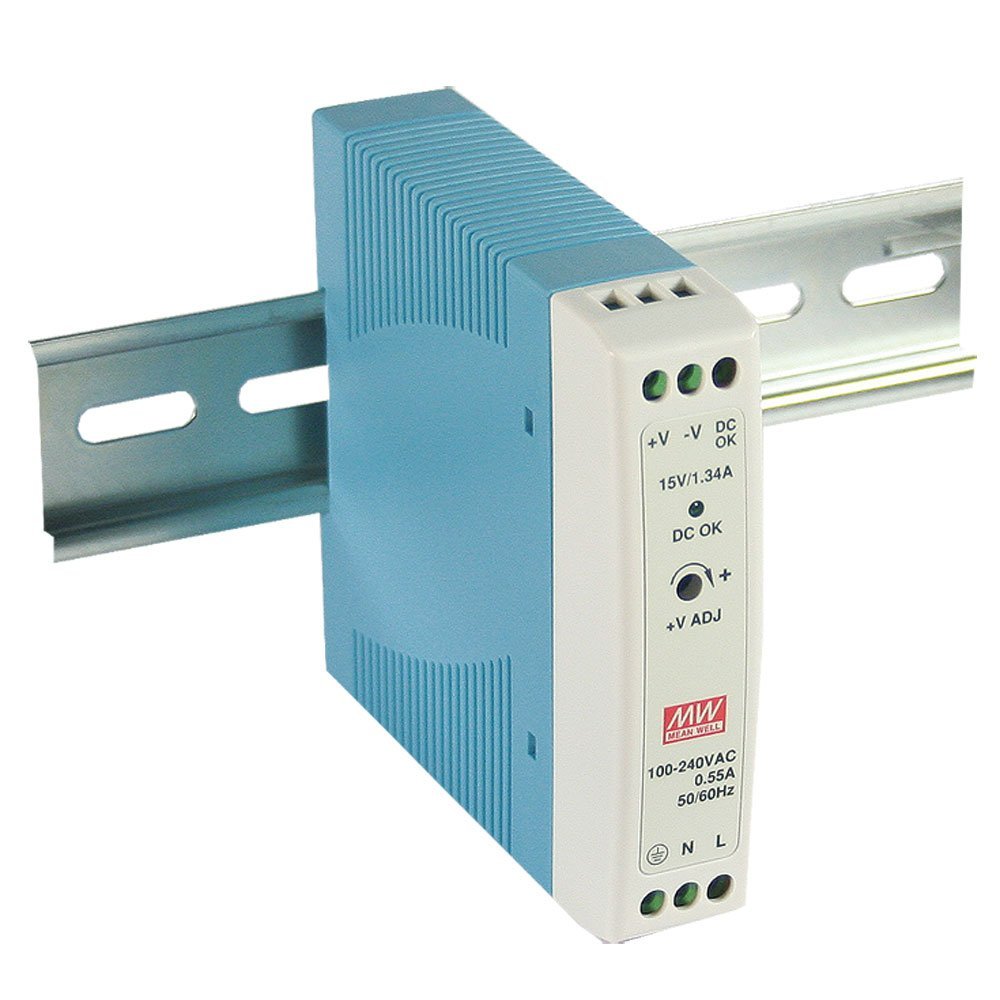

MEAN WELL MDR-20-15 AC to DC DIN-Rail Power Supply 15V 1.34 Amp 20W

Description

• Primary output voltage (vdc): 15
• Output current (a): 1.34
• Maximum output power (w): 20
• Family: mdr-20
• Input voltage (vac): 85 to 264

20W DIN-RAIL SWITCHING POWER SUPPLY 15 Volts 1.24 Amps Specifications : Universal AC input range Protections: Short-circuit, Overload, Overvoltage 100% Full load burn-in test Soft-start circuit, limiting AC surge current Input Voltage: 85-264VAC 47-63Hz, or 120-370VDC Input Current Full load: 0.55A(115V) / 0.35A(230V) Size: 3.9 x 0.9" x 3.5" Weight: 0.4 lbs. 3-year warranty Detailed Specifications: Primary Output Voltage (VDC): 15 Output Current (A): 1.34 Maximum Output Power (W): 20 Family: MDR-20 Input Voltage (VAC): 85 to 264 Input Frequency: 47 to 63 Maximum Input Current (A): .55 Output Connector Type: Screw Terminal Efficiency (%): 81 Operating Temperature-Min (Cell): -20 Operating Temperature-Max (Cell): 70 Length (inch): 0.89 Width (inch): 3.54 Height (inch): 3.94 Agency Approvals: UL/CUL/TUV/CB/CE Color: White Style: DIN".
