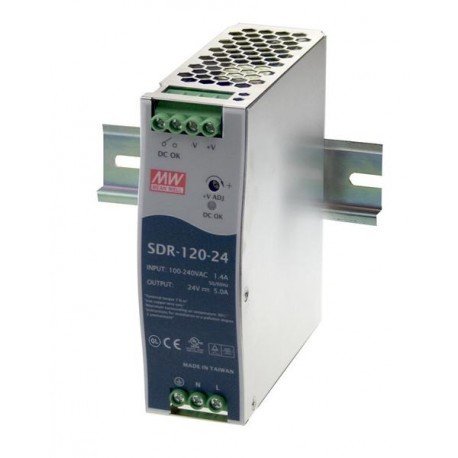

Meanwell SDR-120-24 Power Supply - 120W 24V 5A - Slim High Effi.

Description

• Output Voltage: 24V
• Approx. Wattage: 120W
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Can be installed on DIN rail TS35 / 7.5 or 15
• Warranty: 3 Years Warranty

Features:High efficiency up to 94%Universal AC input / Full rangeBuilt-in active PFC functionBuilt-in DC OK relay contactProtections: Short circuit / Overload / Over voltage / Over temperatureCooling by free air convectionCan be installed on DIN rail TS-35 / 7.5 or 15UL508(industrial control equipment) approvedEN61000-6-2(EN50082-2) industrial immunity level150% peak load capabilityComply with, Comply with SEMI F473 years warrantyGeneral Specification (Please refer to images below for detailed datasheet)AC input voltage range:88~264VAC; 124~370VDCAC inrush current (max.):Cold start, 70A at 230VACDC adjustment range:12V: 12~14V (only for SDR-75/120), 24V: 24~28V, 48V: 48~55VOverload protection:Normally works within 110%~150% rated output power for 3 seconds and then shut down output voltage with auto-recovery (re-power on to recover for SDR-75)Overload protection:>150% rated power or short circuit, constant current limiting with auto-recovery within 2 seconds and may cause to shut down if over 2 secondsOver voltage protection Range:14~17V for 12V modelOver voltage protection Type:Shut down o/p voltage, re-power on to recoverOver temp. Protection:Recovers automatically after temperature goes downWithstand voltage:I/P-O/P:3kVAC, I/P-FG:1.5kVAC, O/P-FG:0.5kVAC, O/P-DC OK:0.5kVACWorking temperature:-25~+70C (refer to output derating curve)Safety standards:UL508, TUV EN60950-1, GL approvedEMC standards:EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3; SEMI, GLConnection:I/P: 3 poles, O/P: 4 poles screw DIN terminalDimension (WxHxD)(mm):40x125.2x113.5
