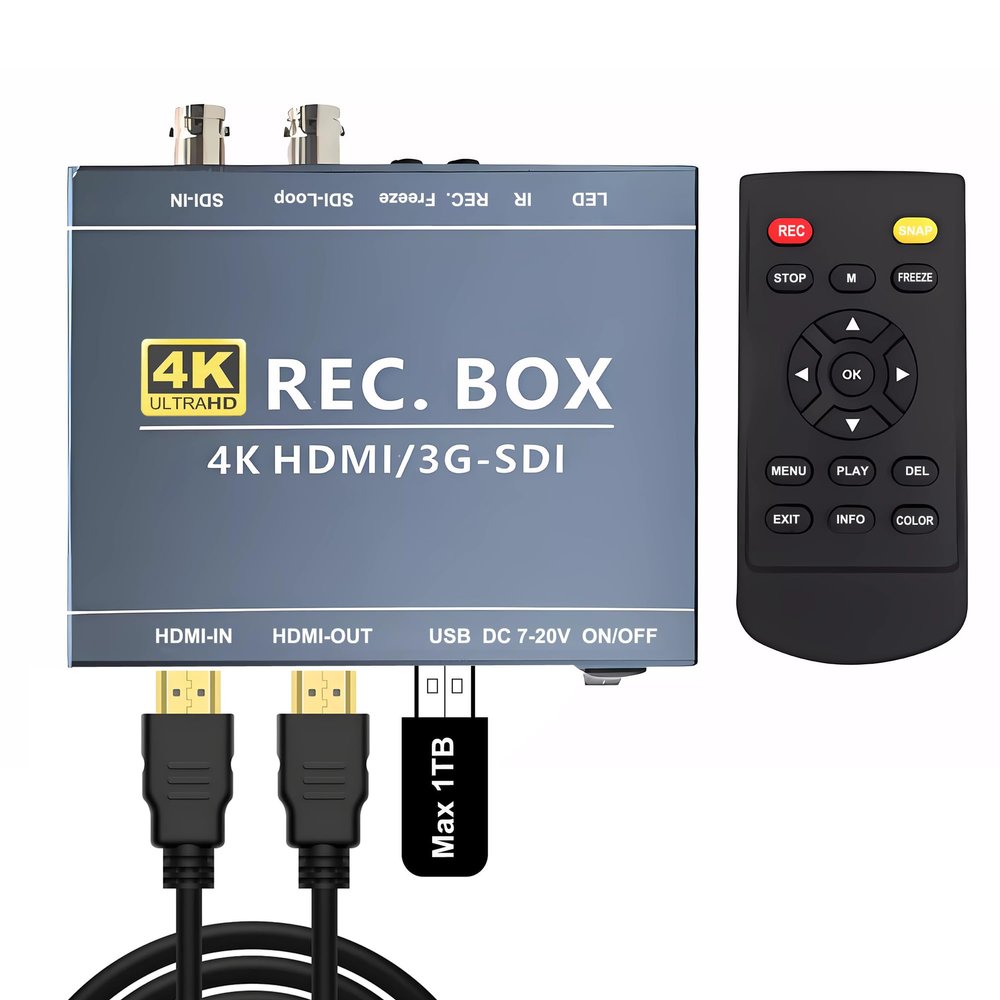

Mini DVR SDI TVI HDMI Recorder with SDI-Loop, SDI to HDMI Converter, 4K HD Video Capture Box for SDI Camera MP4 Digital Recorder Support 1TB U Disk 4K30 1080P60 IR Remote

Description

• Mini DVR Recorder for SDI/TVI/HDMI: Supports 3G - SDI, HD - SDI signals as well as 4K30HZ HDMI or DVI signal input. Whether it's an SDI camera or HDMI/DVI device, it can be easily connected for high - definition video recording, providing a comprehensive solution for your imaging needs.
• 4K HD Video Capture Box: High - Quality Recording: With a maximum support for 4K30HZ signal input and recording, it adopts H.264/H.265 compression format and adjustable bit rate to ensure the recorded videos are clear, smooth and rich in details, meeting your high - quality imaging requirements. DC7V - 20V wide voltage input makes it adaptable to various power environments and ensures stable operation of the equipment.
• Convenient Operation and Storage: The menu can be controlled via the infrared remote controller, realizing various modes such as manual recording, boot recording and timed recording. Meanwhile, it supports connecting U disk or mobile hard drive for storage via USB, with a maximum support of 1TB storage space, making it convenient for you to save and manage the recorded files anytime.
• SDI to HDMI Converter: Multifunctional Application: It's not only a high - definition recorder but also has SDI to HDMI conversion function, which can convert SDI signal to HDMI signal output. It's suitable for various scenarios such as security monitoring, film production, teaching recording and more, and is a multifunctional video processing device that you can trust.
• Package Content: 1x SDI Mini Recorder, 1x Remote Control, 2x HDMI Cables, 1x DVI Adapter, 1x Power Supply, 1x User Manual, 1 - Year Warranty. If you encounter any quality issues while using this product, our customer service is available online 24/7 to help solve your problems.

Product Name: Mini Recorder (4K HD Video Capture Box)
Mini DVR SDI DVI HDMI Recorder with SDI - LOOP, SDI to HDMI Converter, 4K HD Video Capture Box for SDI Camera MP4 Digital Recorder Supporting 1TB U Disk, 4K30, 1080P60, IR Remote
Versatile Recording Solution
Introducing GRACETOP advanced Mini DVR SDI DVI HDMI Recorder, a powerful and compact device designed to meet all your professional video recording needs. Whether you're working with SDI, DVI, or HDMI cameras, this recorder offers seamless compatibility and high - performance recording capabilities.
Key Features
1. Multi - Format Video Input and Output
Video Input: Supports 3G - SDI, HD - SDI signals as well as 4K30HZ HDMI or DVI signal input. Easily connect your SDI camera, HDMI device, or DVI source for high - definition video recording. The SDI - LOOP function allows for extended SDI connections, making it ideal for complex setups.
Video Output: With an HDMI output, you can directly display your videos on a monitor or TV. The included DVI adapter provides additional flexibility for various display setups.
2. High - Quality Video Capture
Recording Resolution and Codec: Capture stunning videos with a maximum support for 4K30HZ signal input and recording. Choose between H.264 and H.265 compression formats to optimize video quality and file size. Bit rate is adjustable from 4/8/10/15/20MBPS, ensuring the perfect balance between quality and storage efficiency.
Audio Support: Supports sample rates of 48KHZ and 44.1KHZ, automatically recognizing the audio input for clear and synchronized sound. Language options include Chinese, English, Russian, and Japanese.
3. Convenient Operation and Storage
Control: The menu can be conveniently controlled via the infrared remote controller. Switch between manual recording, boot recording, and timed recording modes as per your requirements.
Storage: Connect a U disk or mobile hard drive via USB for storage, with a maximum support of 1TB. Store and manage your recorded files with ease. File formats include TS and MP4, providing flexibility for different playback and editing needs.
4. Advanced Functionality
SDI to HDMI Conversion: This device not only serves as a high - definition recorder but also converts SDI signals to HDMI signals for output. It's a versatile solution suitable for security monitoring, film production, teaching recording, and more.
Automatic Overwrite and Duration Settings: Set the recorder to stop when the storage is full or enable automatic overwrite. Choose from various recording durations including 15, 30, 60, 120 minutes, or unlimited duration to suit your specific application.
Technical Specifications
Input Voltage: DC7V - 20V wide voltage input ensures stable operation in various power environments.
Working Temperature: Operates efficiently within a temperature range of -20 - 70C.
Dimensions and Weight: Compact and lightweight design with dimensions of 1078727MM and a weight of 225g, making it easy to handle and install.
Package Content
1x SDI Mini Recorder
1x Remote Control
2x HDMI Cables
1x DVI Adapter
1x Power Supply
1x User Manual
1 - Year Warranty
Experience the convenience and reliability of our Mini DVR SDI DVI HDMI Recorder. If you encounter any quality issues while using this product, our customer service is available online 24/7 to help solve your problems.
