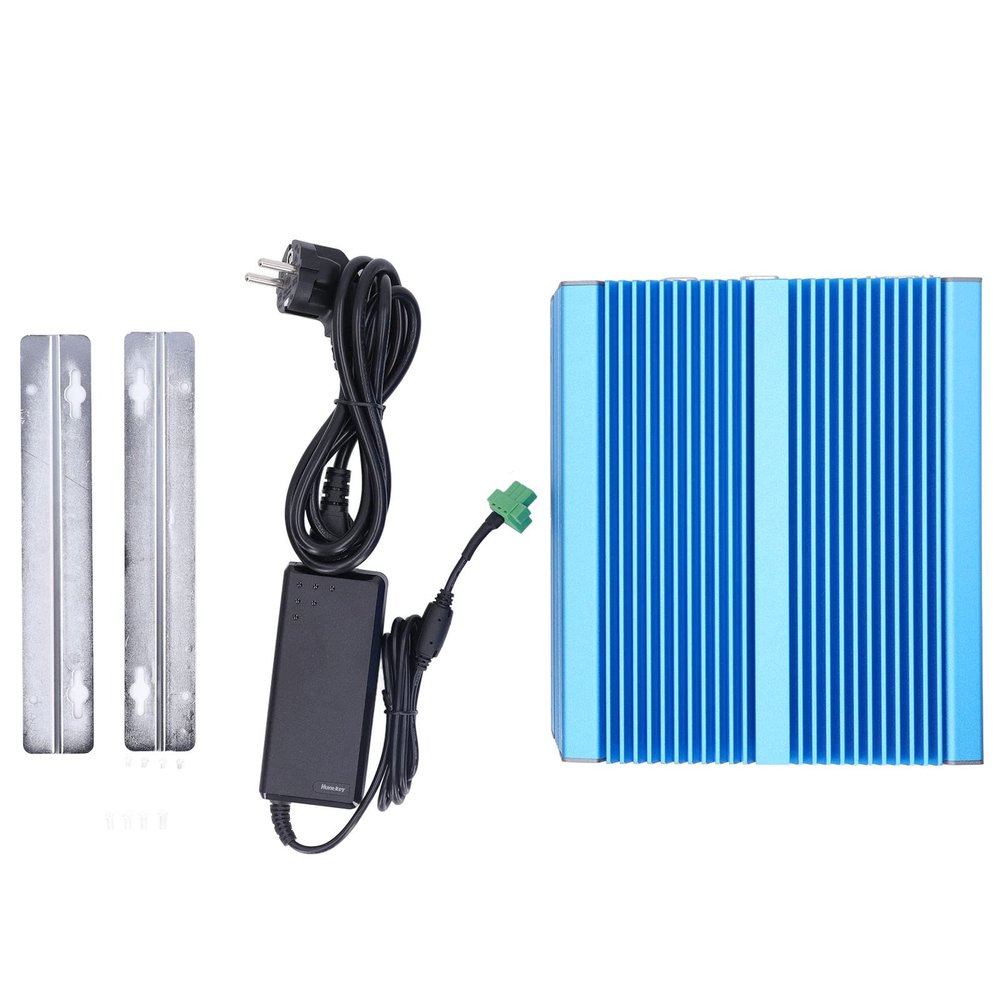

NDNCZDHC Fanless Mini PC, Fanless Industrial Control Computer Dual Core Multifunctional Mini Industrial PC 100240V for 6Axes Robots Equipment(US Plug)

Description

• Strong Adaptability: The industrial computer supports stable operation in harsh environments at 20~50, with strong heat dissipation performance, dustproof, noise proof, and electromagnetic interference resistance.
• Multi Axes Control Card: Can be used for 5 axes CNC machine tools, 6 axes robots, equipment, non standard automation equipment, special process equipment, textile machinery, packaging and printing, assembly line workstations, etc.
• Data Acquisition Card: Software programmable functional IO supports a variety of applications, including TTL digital IO, high speed DIO, timer counter, pulse generation, analog input and output and functional IO operations can run simultaneously.
• Digital IO Card: 32 channel isolated digital input and output card, easier to sense the status of external devices, non characteristics suitable for various relay drive and industrial automation applications.
• Multiple Functions: Multi mode data transmission, the industrial computer has multiple interface and MINI PCIE expansion slot, supports independent selection of network mode, 4G, WIFI, supports multiple systems.

Specification:
Item Type: Industrial Computer
Chassis Color: Blue, gray
Chassis Material: All aluminum alloy, hard anodized surface
Processor: Onboard for Intel Celeron 3867U (dual core, dual thread, 2MB L3 cache, main frequency 1.8 GHz)
BIOS: For AMI EFI BIOS
Display Chip: Integrated for Intel HD Graphics 610/620 core graphics card
Display Interface: 1 VGA interface, 1 HD multimedia interface built in pin (support synchronous asynchronous dual display)
Front Panel Ports: 2 USB3.0, 2 USB2.0, 2 indicator lights, 1 power switch
Rear Panel Ports: 2 USB3.0, 2 for Intel Gigabit Ethernet ports, 1 VGA port, 1 3P power supply terminal
Expansion Interface: 1 clear COMS button, standard 4 COM ports (optional 6 COM ports, COM1, 2 optional RS232 422 485 mode), support 1 MINI PCIE slot (optional WIFI 3G 4G), with SIM card holder, support 1 MINI PCIE slot (support MSATA)
Expansion Slot: 1 PCIE X4 slot and 1 PCI slot (32bit), built in 1 USB2.0 interface
Network Interface: 2 for Intel i211-AT 10/100/1000M Ethernet
Storage Interface: Support 1 MSATA slot, onboard 1 2.5in hard drive
Product Input Voltage: DC 9-36V wide voltage input, support reverse polarity protection
Other Functions: Power on, timed boot, LAN wake up, PXE boot, watchdog (level 0-255)
Operating Temperature: -20-60 (industrial SSD), surface air flow
Working Humidity: 5%-95% non condensing state

Package List:1 x Industrial Computer8 x Screws1 x Power Cord1 x Hex Screwdriver2 x Hanging Racks
