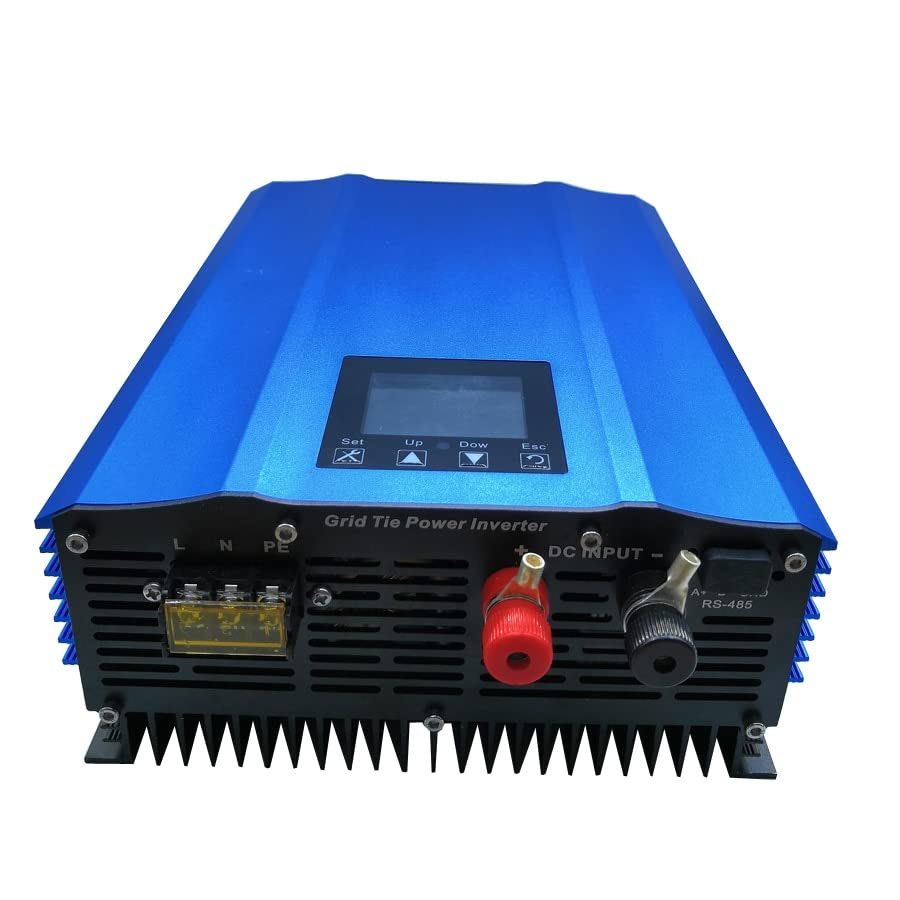

PDOLIGBDN 1200W Grid tie Micro Inverter Adjustable Battery Discharge,Colorful LCD Pure sine Wave Solar Grid tie Inverter (Color : 1200w, Size : PV 72V-110-120V)

Description

• Power Inverters
• Inverter

Power Inverters
Inverter
1200W Grid Tie Inverter with Colorful LCD ,Adjutable Battery discharge
PV Input range:55V~90V
/ 85V-130V
/ 120V~180V
/170V~220V
Battery:48V 72V 96V 132V
Please choose proper DC input range according to your PV module /battery banks.
1. ColorfulLCD display, more intuitive display parameters; built-in Chinese/English interface
2. 4 function keys, parameterizable operation;
1).The main interface can display the current model specifications, DC voltage, AC voltage, real-time power, internal real- time temperature, cumulative total power generation, real-time working status prompts, such as: work, standby, AC and DC voltage is too high or too low, internal Temperature over temperature prompts and other status prompts.
2).LCD backlight light 1 to 9 can be set;
3). delay start time can be set: 5-180 seconds;
3. It can be set to battery working mode and photovoltaic working mode;
Battery operating mode can set the battery start voltage, lowvoltage protection voltage, output power
When the DC input voltage is too low or too high, the LCD will automatically turn off after 10 minutes of standby to reduce power consumption and extend the life of the LCD. When the DC input voltage reaches the normal allowable input voltage range, the LCD display will automatically turn on
Self-test mode is provided. After entering the self-test option, the test will be performed in sequence: AC input voltage and display voltage, DC input voltage value, current power value, internal AC relay on/off test, fan start/stop test, and test completion prompts need to be renewed. Only after power can the inverter be restarted;
Specifications:
Power
1200W
DC input parameters
model
GTN-1200G48
GTN-1200G72
GTN-1200G96
GTN-1200G132
PV-VOC range
55V--90V
85V-130V
120V--180V
170V--220V
Max PV Input
