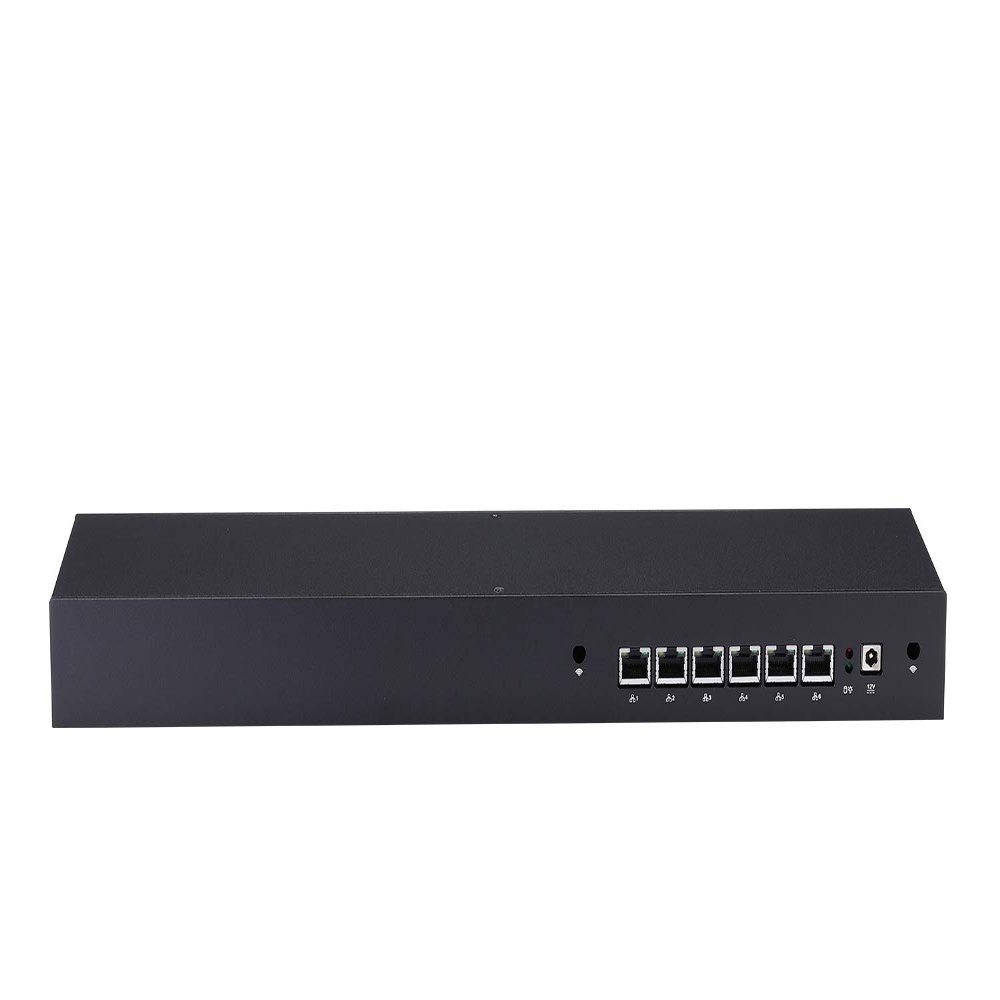

Qotom 1U Rack Q535G6 Mini PC i3 7100U,16G RAM 128G Msata,Mini Router Firewall

Description

• Intel Core i3-7100U Processor,dual core,2.4GHz(AES-NI) 3M Cache;Intel HD Graphics 620
• 16G DDR4 RAM; 128G SSD;6 x Intel I210-AT- 10/100/1000 Controller
• 6LAN+HD Video+COM+2USB2.0+2USB3.0,Low Power,Aluminum alloy case ,24/7/365 ,Perfect fit for a LAN or WAN router, firewall, proxy, Wireless access point, VPN appliance, DHCP Server, DNS Server, etc.
• Support power failure Auto-on:Step 1: Power up your MINI PC and press DEL to enter BIOS. Step 2: Inside BIOS menu,select the boot option to find a setting named automatic power on and enable this setting.

Model:Qotom-Q535G6
Processor:Intel Core i3-7100U (3M Cache, dual core 2.4GHz)
Memory:Support DDR4L SO-DIMMs 2133MHz, 1 x DDR4 DIMM Memory Slot, Max.16GB Memory
Power Consumption:TDP 15W
Graphics: Intel HD graphics 620
Onboard LAN:6 x Intel I211-AT-10/100/1000 Controller
Hard Disk:Support MSATA SSD - Support 2.5 SATA HDD
Wireless:Suport ONLY USB Channel wifi such as RT5390
Dimension:440*112*44mm
Weight:2kg

Operating Temp.: 0~50 Degrees Celsius

Non-Operating Temp.: -20~80 Degrees Celsius

Front-Panel Connectors:

1 x Power on/off button
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x HD Video Connector
1 x Serial port
Internal Connectors:

1 x Minipcie Port (for MSATA SSD)
1 x Minipcie Port (for WIFI/4G Module)
1 x DDR4L SO-DIMM Memory Slot
1 x SATA Port
1 x SATA power connector
1 x Automatically boot jumper
1 x GPIO Header (optional)
1 x SIM Card Slot (optional)
Back-Panel Connectors:

1 x DV 12V DC input
1 x HDD LED
1 x Power LED
6 x Intel RJ-45 Ports (Intel I211-AT- 10/100/1000 Controller)
1 x Speak Out Connector
1 x Mic In Connector

Package included:

1 x Mini PC
1U rack ears

Mini-PCIE are not able to support WiFi and 3G/4G module at the same time in this computer.So you need to remove mini pcie screws. Half-length Mini-PCIE for WiFi, full-length Mini-PCIE is only for 3G/4G. Leave me a message for changing default pcie if you wanna install 3G/4G.
Customised logo is acceptable for free.
You can upload BIOS and Drivers here.-----------http://www.qotom.us/download
