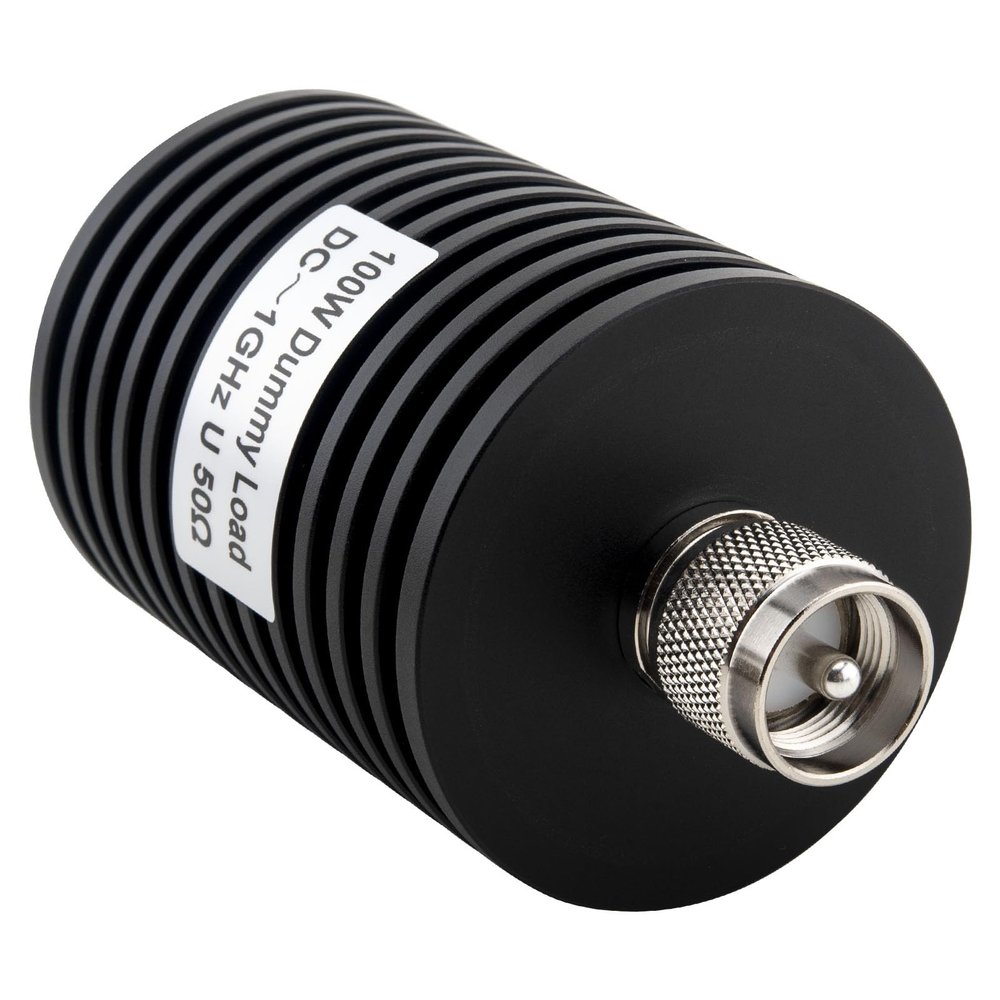

YOTENKO 100W 50 Ohm Dummy Load PL259, DC-1GHz, UHF Male Connector RF Termination Load for Broadcast/Industrial/Military

Description

• Power: 100Watt | Impedance: 50 Ohm | Frequency: DC-1GHz | VSWR: 1.20 | RF Connector: UHF-Male PL259 Connector | Operation Temperature: -55 to +125
• 100W High-Power Absorption- Handles 100W continuous power to protect high-power transmitters in industrial RF plasma systems.
• DC-1GHz Wide Frequency- 50 impedance & 1.2 VSWR ensure signal integrity for AM/FM broadcast, aviation, and lab testing up to 1GHz.
• Arctic/Desert Temperature Proof- Works from -55 to +125, tested through 1,000 hot-cold cycles for extreme environments.
• Compact Rugged Design- Anodized aluminum housing with IP65 rating resists corrosion, dust, and moisture for outdoor/harsh-condition use.

Specifications:
Compatible with: Industrial RF Heating Systems
Broadcast Transmitters (AM/FM/Shortwave)
5G/4G Base Station Testing
Military/Aviation Communication
Connector Type: Input: UHF Male (PL259) / UFH Male (Customizable)
Output: Integrated Termination (No Output Port)
Impedance: 50 1 (Matched to RF Systems)
Power Handling: Continuous: 50W / 100W
Frequency Range: DC1 GHz (Covers AM/FM Broadcast, Aviation, Industrial Heating)
VSWR: 1.20 @1GHz (Ensures Minimal Signal Reflection)
Thermal Design: Material: Black Anodized Aluminum Heatsink (Thermal Conductivity: 160W/mK)
Environmental Resilience: Temperature: -55 to +125 (Validated via 1,000 Thermal Cycles)
IP Rating: IP65 (Dust/Water Resistance for Outdoor Use)
Durability: Mating Cycles: 5,000 (Threaded Connector)
Corrosion Resistance: Salt Spray Test (ASTM B117, 500hrs)
